10/4 Braided Submersible Pump Wire TWU Heavy Duty Cable UL CSA

CSA UL/C approved braided stranded submersible pump wire

Sold in increments of 1ft  / 30.5cm or save by the 1000 ft roll...

Our techs always take an extra 10% in lenght as a rule, you should too!

*Be sure to buy the right length for the job as we do not accept returns on cut wire

Application:

For use within the well casing to supply power to the submersible pump. Designed for use where extra protection is needed and flexibility during installation and operation are required

Description:

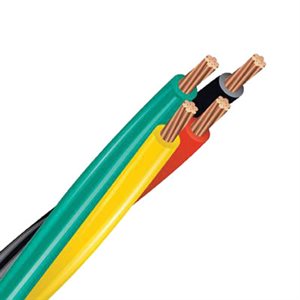

UL listed Type THW heavy duty submersible pump cable is a multi-purpose cable individually insulated, color coded conductors, green ground insulated conductor. Construction provides flexible copper stranding insulated with Type THW (PVC) compound.

• UL/C listed as Type TWU Submersible Pump Cable
• CSA approved
• Acid, alkali, oil and grease resistant
• Weather, ozone and sunlight resistant

Construction:

• Conductors: Flexible stranded soft annealed copper
• Insulation: Thermoplastic polyvinyl chloride (PVC)
• Color coding: black, red, yellow, green (ground)
• Temperature: 75° C
• Max Voltage: 600

Braided Wire is also available in:  14/4, 12/4, 8/4, 6/4 sizes

In our service centre we also carry all common sizes of standard braided wire in 3 or 4 strand configurations.
