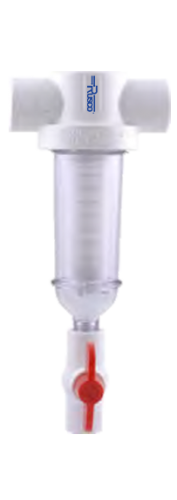

Rusco Spin-Down® Sediment Filter - 3/4" Housing with Flush Valve and you can now choose your Mesh Filter Element

Spin-Down sediment filters are used in many different applications, from domestic well water systems, geothermal heating, lawn, garden & greenhouse, all the way to factories, farms, and cooling systems. Rusco's Spin-Down filters have been providing an industry-leading sediment filtration solution since the '70s.


3/4” Spin-Down Filter Specifications:

• Flow capacity: 1 - 25 GPM *see our note below on flow and pressure below
• Max pressure: 150 PSI
• Dimensions: 11-3/8”L x 5”W
• Filter head material Schedule 40 PVC
• Port size: 3/4" FNPT (female normal pipe thread) in and out
• Choose your Filter Mesh Element
• Manual Flush Valve included
• A Small roll of White Teflon Tape included
• Part Number: 3/4-_ _-F (pick your screen size when adding to cart)
• Made in the USA

These are the available Polyester Elements when selecting this Kit

• 24 Mesh / 711 Microns
• 30 Mesh / 533 Microns
• 40 Mesh / 381 Microns
• 60 Mesh / 254 Microns
• 100 Mesh / 152 Microns
• 140 Mesh / 104 Microns
• 250 Mesh / 61 Microns
• 500 Mesh / 30 Microns
• 1000 Mesh / 15 Microns

These are the available Stainless Steel Elements when selecting this Kit

• 30 Mesh / 533 Microns
• 60 Mesh / 254 Microns
• 100 Mesh / 152 Microns
• 140 Mesh / 104 Microns
• 200 Mesh / 74 Microns

Optional Thread by Thread reducing bushings can be ordered if needed when adding this kit to your cart.

• 3/4" MNPT x 1/2" FNPT (female normal pipe thread)

Notes:

*Extra Mesh Screens can be ordered separately for this housing in another listing here.

*Separation works best at higher flow rates, pressure loss is less at lower flow rates, it's always a bit of a trade-off.

*Slip is a reference to a glued or solvent cement type connection. We recommend using a primer and cement or a primer and solvent cement glue all in one type for your pipe and fitting connections.

*Generally speaking, for household use the most appropriate filter is the 3/4” .or 1” Spin-Down or Sediment Trapper filter.  Irrigation and other higher flow rate applications (>25 GPM) are best served by our 1.5” or 2”  Spin-Down or Sediment Trapper models.

Click here for the manual/install sheet in PDF file format

Click here for a handy chart to help select your mesh screen size
