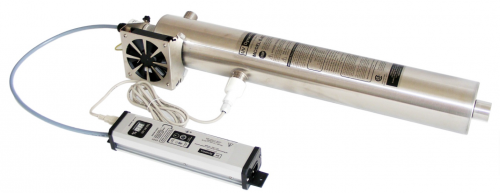

UVDynamics 8.7gpm NSF/ANSI 55 Class A Certified Stainless Steel Complete UV System


This Class A system conforms to NSF/ANSI 55 for the disinfection of microbiologically contaminated water that meets all other public health standards. The system is not intended to convert wastewater or raw sewage to drinking water. The system is intended to be installed on visually clear water. NSF/ANSI 55 defines wastewater to include human and / or animal body waste, toilet paper, and any other material intended to be deposited in a receptacle designed to receive urine and / or feces (black waste); and other waste materials deposited in plumbing fixtures (grey waste).If this system is used for treatment of untreated surface waters or ground water under the direct influence of surface water, a device found to be in conformance for cyst reduction under the appropriate NSF/ANSI standard shall be installed upstream of the system.

Features:

    Flow rate of 8.7gpm (32.9L/min) delivers UV dose of 40mj/cm2
    Passivated and polished 304 stainless steel reactor chamber measuring 3.5”  x 24.5”
    9000hr long life coated UV lamp
    Microprocessor controlled UV power source with audible and visible lamp failure alarms and two digit display
    True Lamp Current closed loop current control
    Annual lamp change reminder timer
    Lamp life remaining feature
    Built-in dynamic flow regulator
    Cold Spot Fan
    ¾” FNPT inlet, ¾” MNPT outlet
    Domed quartz sleeve to simplify servicing
    No tools required for regular servicing
    Easy-service lamp connector
    Low cost replacement parts
    Comes complete and ready to install
    Optional Solenoid Valve and Remote Interface Kits Available
    EPA Est 089330-CAN-001
    Model number UVD8.40C, UVD008.40C0120LL/S

Made in Canada

If you are needing a higher flow rate in a certifed system see our other models including 11gpm - UVD11.40C, 14.5gpm - UVD14.40C, 20.2gpm - UVD20.40C NSF Rated Systems

Click Here to download manufacturer spec sheet
